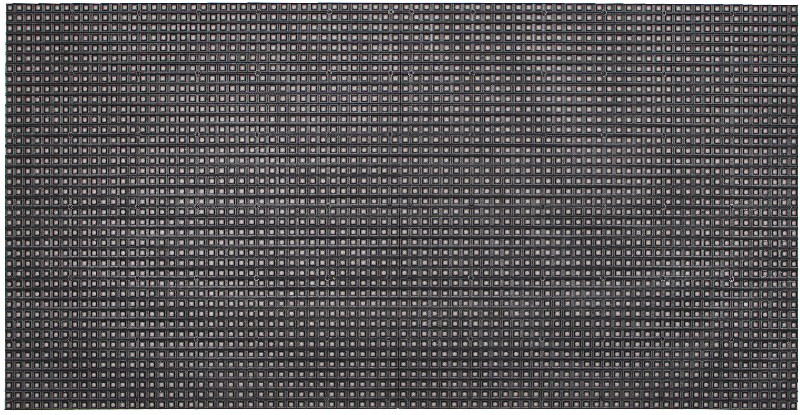

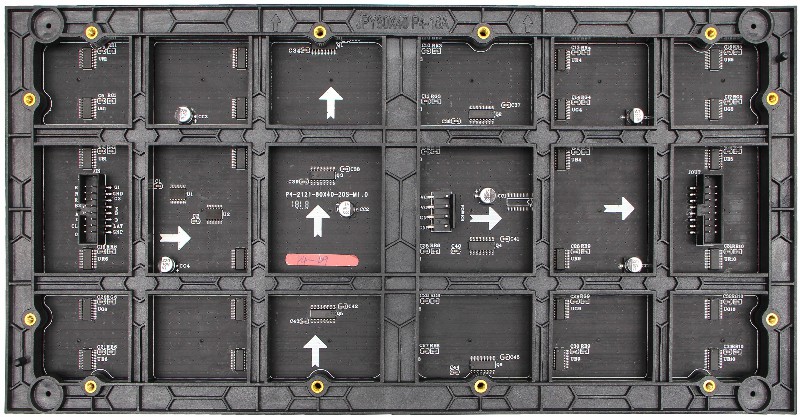

P4室内LED显示屏模组
  • P4室内LED显示屏模组
  • P4室内LED显示屏模组
分享到:
  • 模组

    Unit Module

    项目           Item

    参数 Parameter

    产品型号       Model Number

    P4-20S

    模组尺寸       Module size

    320*160mm

    物理点间距     Pixel pitch

    4mm

    物理密度       Pixels Density

    62500/m2

    发光点颜色     Pixel configuration

    1R1G1B

    LED封装       Package mode

    SMD2020

    模组分辨率     Pixel resolution

    80dots(W)*40 dots(H)

    最佳视距       Best viewing distance

    4M30M

    单元板电流     Panel current

    4A

    模组最大功耗   Max Power

    20W

    模组厚度    Module thickness

    12.1mm

    模组重量       Weight

    0.27KG

    驱动方式       Drive type

    恒流驱动Constant drive

    扫描方式       Scan mode

    1/20扫描 1/20Scan

    接口方式       Port type

    HUB75E

    白平衡亮度     Brightness of white balance

    600cd/

    刷新频率       Refresh frequency

    1920HZ
